Technical specifications
General info
| Location |
Batuje, Slovenia |
| Investor |
ŠKRLJ d.o.o. |
| Installed power |
258,57 kW |
| Commissioning |
2011-12 |
|
| Solar panels |
255 W 8 x 12 / 240 W 6 x 10 array |
| String monitors |
SMB-10-F12-PN |
| Inverter |
SanRex 250 kW |
| Solar controller |
SCU-20 |

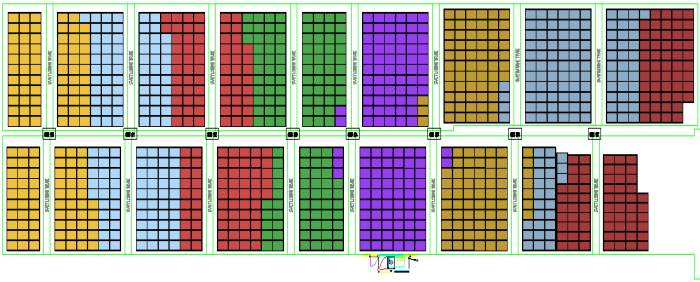

Panel arrangement
Panel details
| Manufacturer |
Topsola / CanadianSolar |
| Type |
TSM96-125M-255W / CS6P-240P |
| Maximum power |
255 W / 240 W |
| External dimensions |
160.2 x 106.1 cm / 163.8 x 98.2 cm |
| Surface |
1.699722 m2 / 1.608516 m2 |
| Rated efficiency |
17% / 14.92 % |
|
| Cell technology |
mono-cystaline / poly-crystaline |
| Cell size |
12.5 x 12.5 cm / 15.6 x 15.6 cm |
| Cell surface |
156.25 cm2 / 243.36 cm2 |
| Cells per panel |
96 cells / 60 cells |
| Cell arrangement |
8 rows x 12 columns / 6 rows x 10 columns |
| Connection |
series circuit / series circuit |
|
| Open circuit voltage |
59.28 V / 37.0 V |
| Maximum power voltage |
48.24 V / 29.9 V |
| Short circuit current |
5.71 A / 8.03 A |
| Maximum power current |
5.29 A / 8.59 A |
|
| Panel count |
962 + 63 panels |
| Panel arrangement |
74 strings x 13 panels + 3 strings x 21 panels |
| String arrangement |
10+10+10+10+10+10+10+7 |
Inverter details
| Manufacturer |
Sansha electric co. |
| Brand name |
SanRex |
| Type |
PV-250K-40T-03 |
| Nominal power |
250 kW |
| Rated efficiency |
95.4 % |
| Grid voltage |
3 x 400 VAC |
| CAN controller |
COM-PCS |
