Technical specifications
General info
| Location |
Hrpelje, Slovenia |
| Investor |
Primel d.o.o. |
| Installed power |
102.4 kW |
| Commissioning |
2009-10 |
|
| Solar panels |
175 W, 39 x 15 array |
| String monitors |
SMB-10-PN-F12 |
| Inverter |
SanRex 100 kW |
| Solar controller |
SCU-20 |

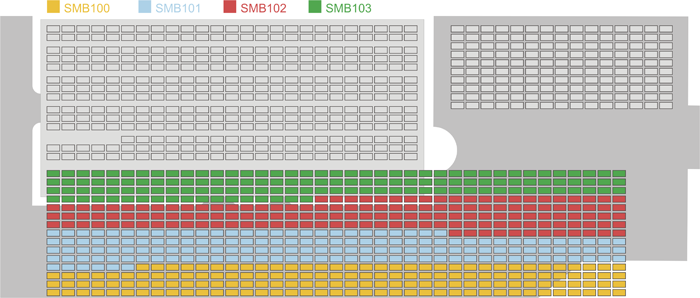

Panel arrangement
Panel details
| Manufacturer |
Topsola Green Energy Co. |
| Type |
TSM-160M-175Wp |
| Maximum power |
175 W |
| External dimensions |
158 x 80.8 cm |
| Surface |
1.277 m2 |
| Rated efficiency |
16.5 % |
|
| Cell technology |
mono-crystaline |
| Cell size |
12.5 x 12.5 cm |
| Cell surface |
143.75 cm2 |
| Cells per panel |
72 cells |
| Cell arrangement |
6 rows x 12 columns |
| Connection |
series circuit |
|
| Open circuit voltage |
44.0 V |
| Maximum power voltage |
35.6 V |
| Short circuit current |
5.40 A |
| Maximum power current |
4.92 A |
|
| Panel count |
585 panels |
| Panel arrangement |
39 strings x 15 panels |
| String arrangement |
10 + 10 + 10 + 9 |
Inverter details
| Manufacturer |
Sansha electric co. |
| Brand name |
SanRex |
| Type |
PV-100K-40T-03 |
| Nominal power |
100 kW |
| Rated efficiency |
95.3 % |
| Grid voltage |
3 x 400 VAC |
| CAN controller |
COM-PCS |
